Gradde Aaven VOLL

406,00 €

Gradde interior doors Monolith are constructed from reinforced vertical and horizontal elements made of solid HDF material, assembled with internal connectors. The vertical element is 40 mm thick and 107 mm wide. The horizontal ‘Panel’ element is 22 mm thick, whilst the main load-bearing element is 35 mm thick.

Colour

Clear

WHERE TO BUY

Compare

Add to wishlist

PN: gradde-18 Category: Gradde interior doors

Description

Gradde Aaven VOLL interior door

► Reinforced vertical and horizontal elements made of solid HDF, assembled using internal connectors;
► A vertical member 40 mm thick and 107 mm wide; a horizontal ‘Panel’ member 22 mm thick; a main load-bearing member 35 mm thick;

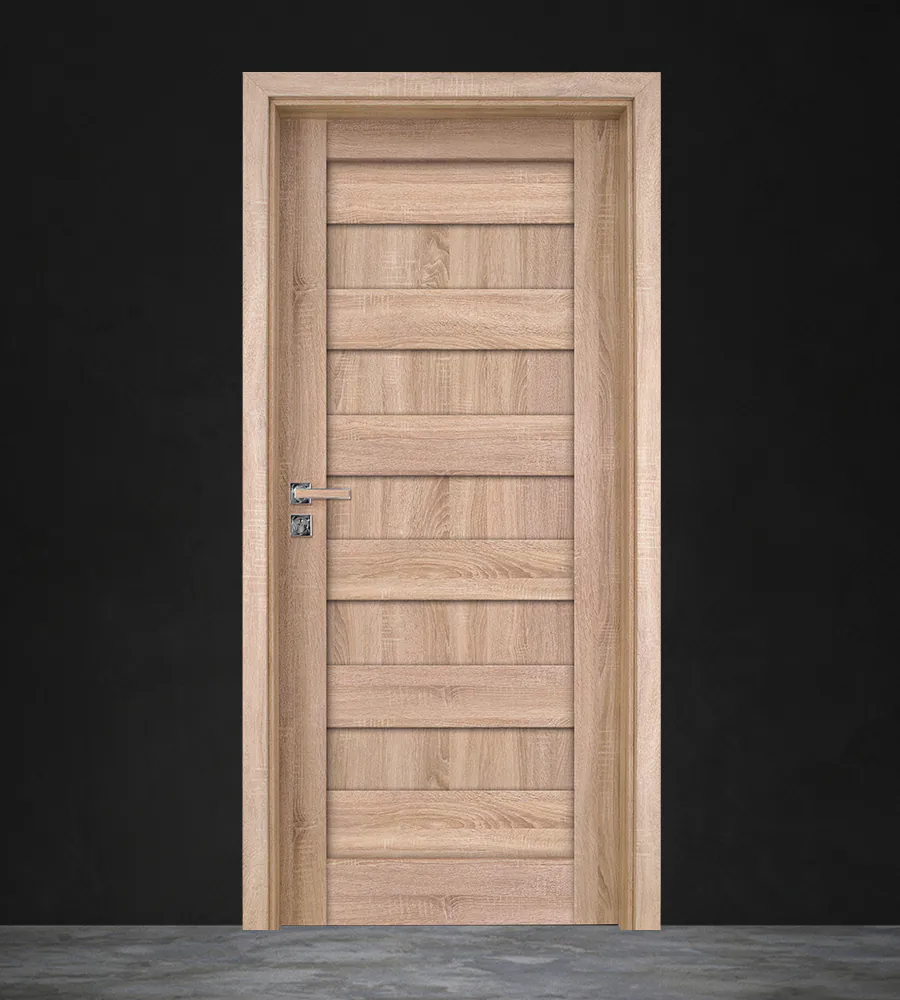

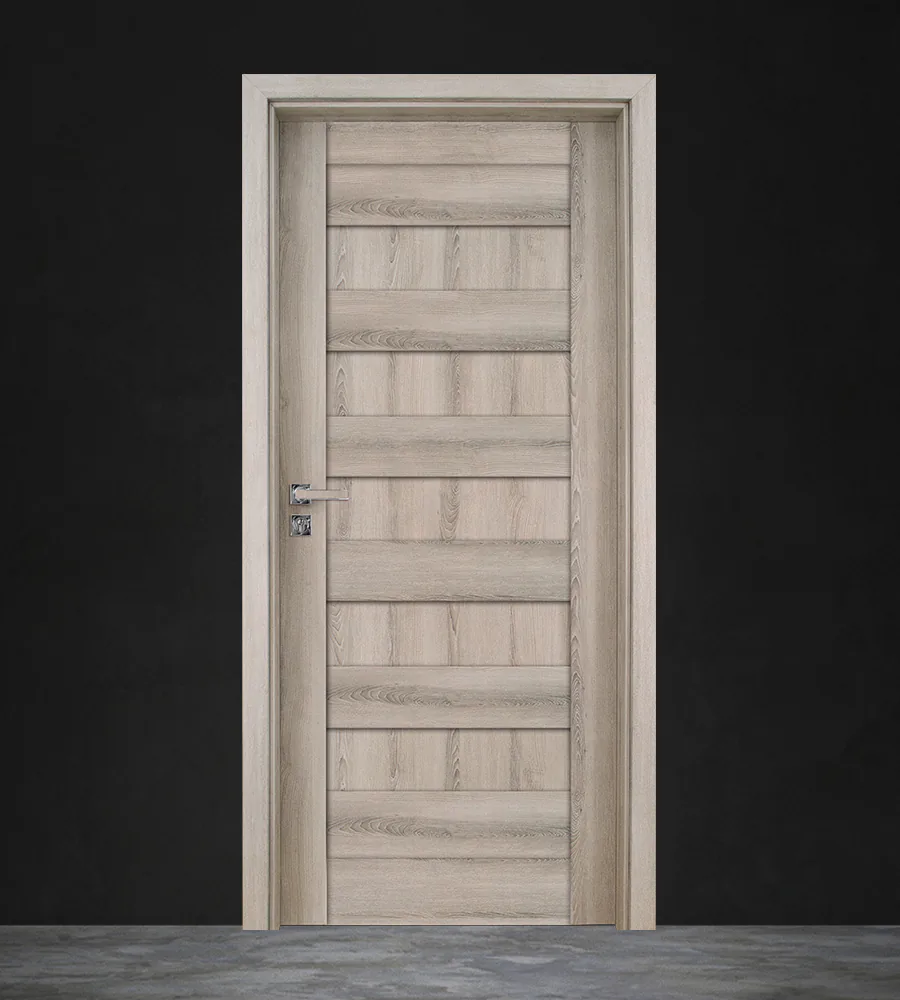

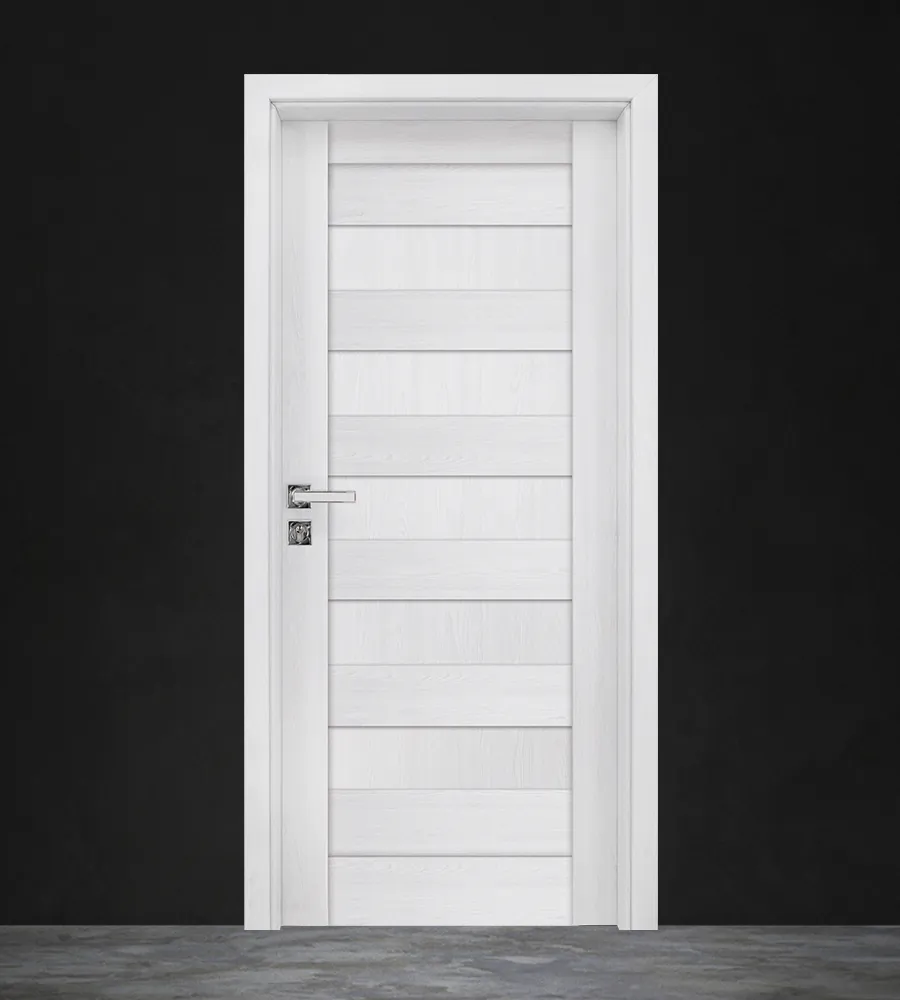

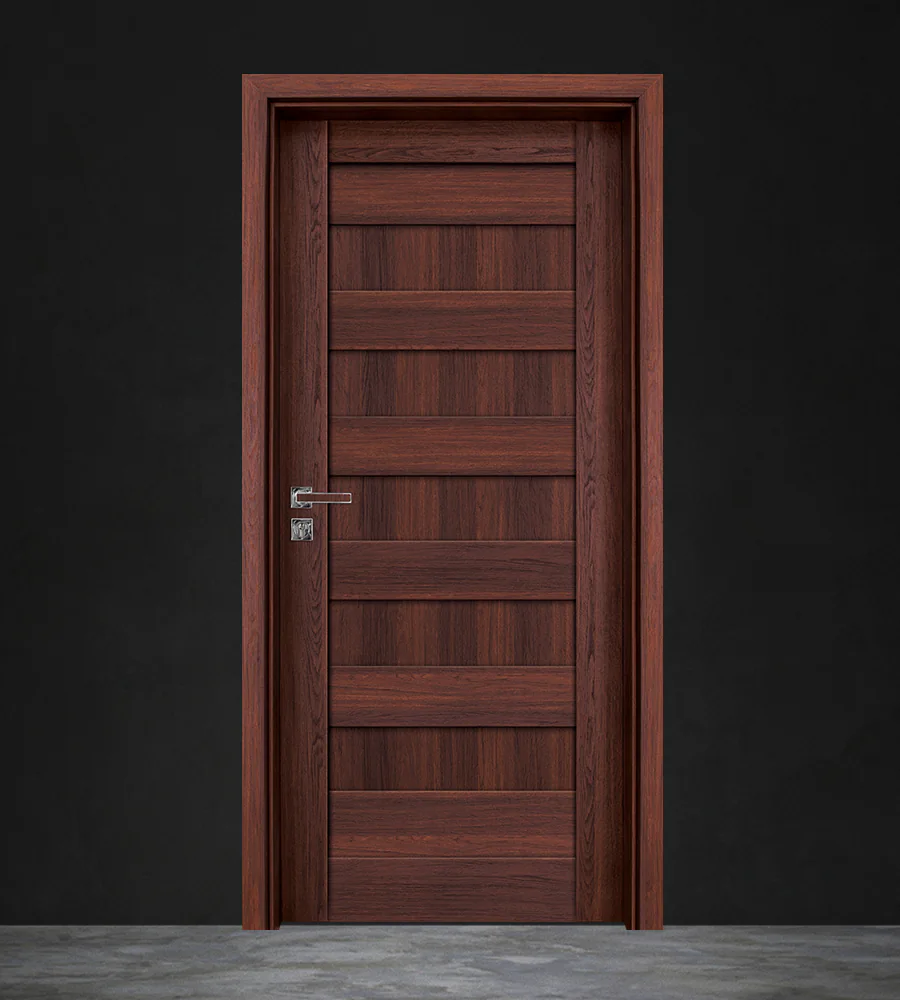

► Light-coloured range (Siberian larch, Verade oak, Veralinga ash, Swedish oak) with a Graddex Klasse A finish;

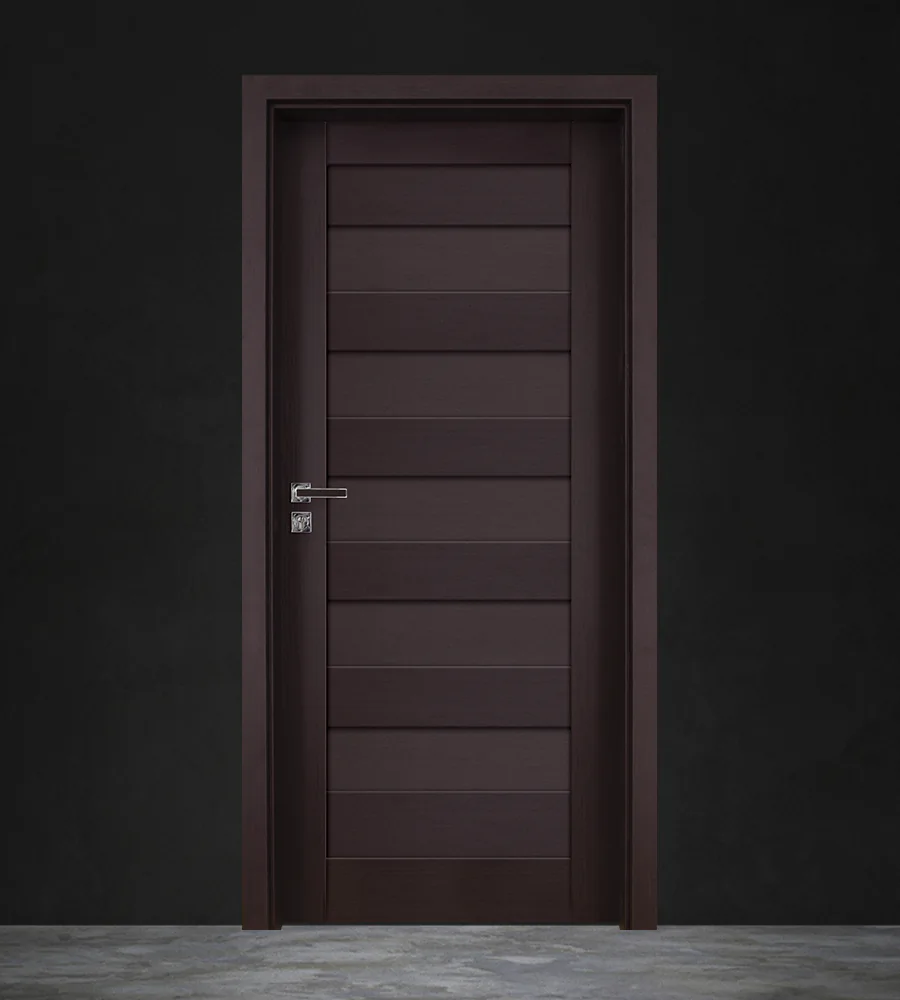

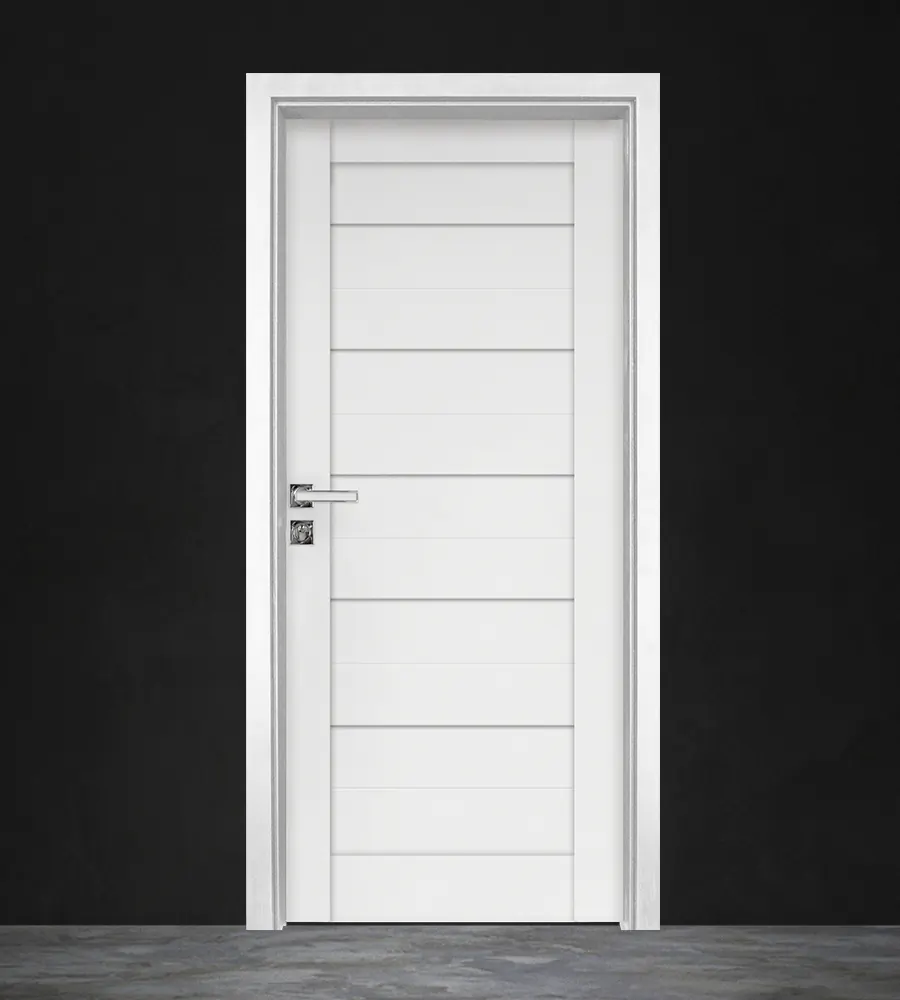

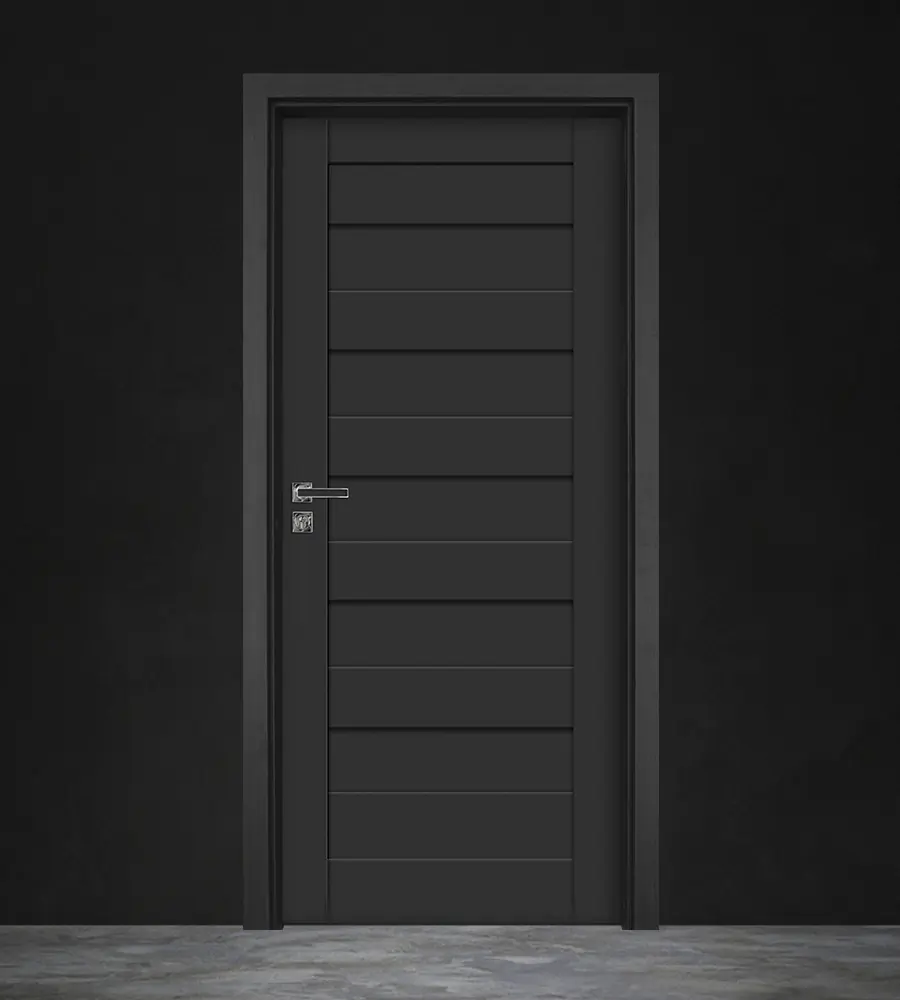

► Dark colour range (Ribeira Walnut, Matt Anthracite, Matt White) with a Graddex Klasse A++ finish;
► Graddex Klasse A – a decorative layer of cellulose and wood particles, impregnated with melamine resins and varnishes to ensure strength and protection against scratches;
► Graddex Class A++ – a multi-layer coating of vertically arranged wood particles, impregnated with a protective varnish, synthetic resins and melamine resins, using Hartfein technology;
► Adjustable HDF frame with straight edging, allowing the width to be increased or decreased by up to 20 mm;
► Panel Frame – fits onto a metal frame without the need for chiselling; dimensions: 778/2010 mm and 878/2010 mm;
► Standard casing with straight skirting boards for walls from 60 mm to 380 mm;
► Folding doors – the direction of opening is to be specified when ordering;
► Set: Standard straight frame for walls from 60 to 139 mm, door leaf, thresholds for both sides (floating on one side), rubber seal, lock with PVC latch, strike plate, lock cylinder with 1 key, three centre-pivot hinges.

*Note: The price quoted includes a wall-mounted box with a thickness of from 75 mm to 139 mm.

TECHNICAL SPECIFICATIONS

► The Monolith category is missing a glass holder profile;
► The individual wing components are finished using an innovative technology that allows them to be fitted without any visible breaks in the Graddex coating;
► Greater resistance of the coating to wear and damage compared with the standard veneering method;
► Rounded wing edges with an innovative Edge profile, giving a stylish finish;
► Rebated door leaf, 40 mm thick.
► A door frame with straight architraves, adjustable on one side, made of HDF with the same finish as the door leaf and architraves;
► The width of the casing can be increased by up to 20 mm or reduced by approximately 15–20 mm by cutting it down;
► Recommended installation openings: for a 644 mm sash – 670–730 mm / 2010 mm; for a 744 mm sash – 770–830 mm / 2010 mm; for an 844 mm sash – 880–930 mm / 2010 mm;
► Frame sizes according to wall thickness: 75–94 mm, 95–114 mm, 120–139 mm, 140–159 mm, 160–179 mm, 200–219 mm, 240–259 mm, 280–299 mm, 320–339 mm;
► Contents: frame, door leaf, straight thresholds for both sides, rubber seal, standard lock with PVC latch, strike plate, one key, three centre-pivot hinges.

Further information

Wing material	HDF
Wing dimensions	744/1990, 844/1990 mm
Dimensions of the wing with the frame	748/1995, 848/1995 mm
Wing thickness	40 mm
Coverage	Graddex Class A or Graddex Class A++
Type of hinges	Axial
Number of hinges	3 items
Bravo	Standard lock with a PVC latch
Seals	Rubber seals to match the colour of the door
Selecting handles from the catalogue	are not included in the price of the standard configuration

About GRADDE

GRADDE doors impress with their sleek design, minimalist style and precision
Manufacture. Their construction is lightweight yet sturdy, thanks to the internal
a „honeycomb“ structure or perforated wooden panels, which provide
excellent insulating properties.
The range includes options such as swing and sliding doors, as well as models
with partial glazing — designed to blend harmoniously into any
Interior design. When detail matters, GRADDE is your trusted choice
